KEY FEATURES
TECHNICAL DATA
| Turbine | 20 hp shaft turbine |
| Rotor | Flettner double rotor system |
| Typical empty weight | 143 lbs (65 kg) |
| Fuel types | Jet A1 – other fuel types on demand (JP-8, JP-5) |
| Fuel consumption | 2.3 gal/h (9 l/h) |
| Data link type | Fully encrypted MESH IP (SATCOM and LTE on demand) |
| Data link range | Radio and antenna configuration up to 124 mi (depending on terrain topography and national regulations) |
| Operating temperature | -13 °F to +131 °F (-25 °C to +55 °C) |
| Max. wind speed | 25 kn/h (45 km/h) |
| Start and landing | Fully autonomous |
PERFORMANCE
| Max. flight time | 360 minutes |
| Max. airspeed | 65 kn (120 km/h) |
| Max. flight mission/ payload weight | 1 hrs / 112 lbs, 2 hrs / 94 lbs, 4 hrs / 61 lbs, 6 hrs / 30 lbs |
| Max. take-off weight | 264 lbs (120 kg) |
| Max. payload and fuel | 121 lbs (55 kg) |
| Operating ceiling | (max. density altitude) 13,123 ft (4,000 m) |
Replacing Manned Helicopters with Unmatched Efficiency
The ANAVIA HT-100 is built to replace missions traditionally handled by manned helicopters, offering the same grade of ISR equipment, cargo capacity, and multi-mission payloads—but with a significantly lower investment. At its core is a Swiss-engineered 20 hp turbine engine that burns just 2.4 gallons per hour of JET A-1, JP-5, or JP-8 fuel, delivering exceptional efficiency without compromising capability. The HT-100 boasts an endurance of up to six hours per mission and can carry a maximum payload of 130 lbs.
Flight Endurance For Your Operational Environment
With a cruise speed of 62 mi/h, the HT-100 maintains consistent performance even in extreme weather conditions. It can cover up to 370 mi while carrying a 50 lbs payload, positioning it as the market leader in sensor payload capacity. Its modular ‘plug & play’ avionics system allows for seamless integration of sensors and mission-critical equipment, making it an adaptable platform for a wide range of operations. The HT-100 redefines what’s possible in autonomous UAV missions, setting a new benchmark in performance, versatility, and reliability.
Support & Payload Capabilities That Meet Your Demands
The HT-100 is engineered for maximum reliability, efficiency, and longevity, starting with its dual inter-meshing Flettner main rotors that eliminate the need for a tail rotor—reducing vibration and enhancing stability. Its full carbon composite structure ensures a lightweight, durable airframe designed for high performance in demanding environments.
Mission control at your fingertips
The ANAVIA HT-100 is a Remotely Piloted Performance Helicopter that sets the standard for autonomous flying, with a flight time of 360 minutes and airload of up to 130 lbs. Innovative carbon lightweight construction, decades of knowledge from aerospace and motorsport technology are in the DNA of every ANAVIA helicopter.
The ANAVIA HT-100 is truly unique in terms of its security, performance, and usability. Only the HT-100 can make all your flight missions a guaranteed success.

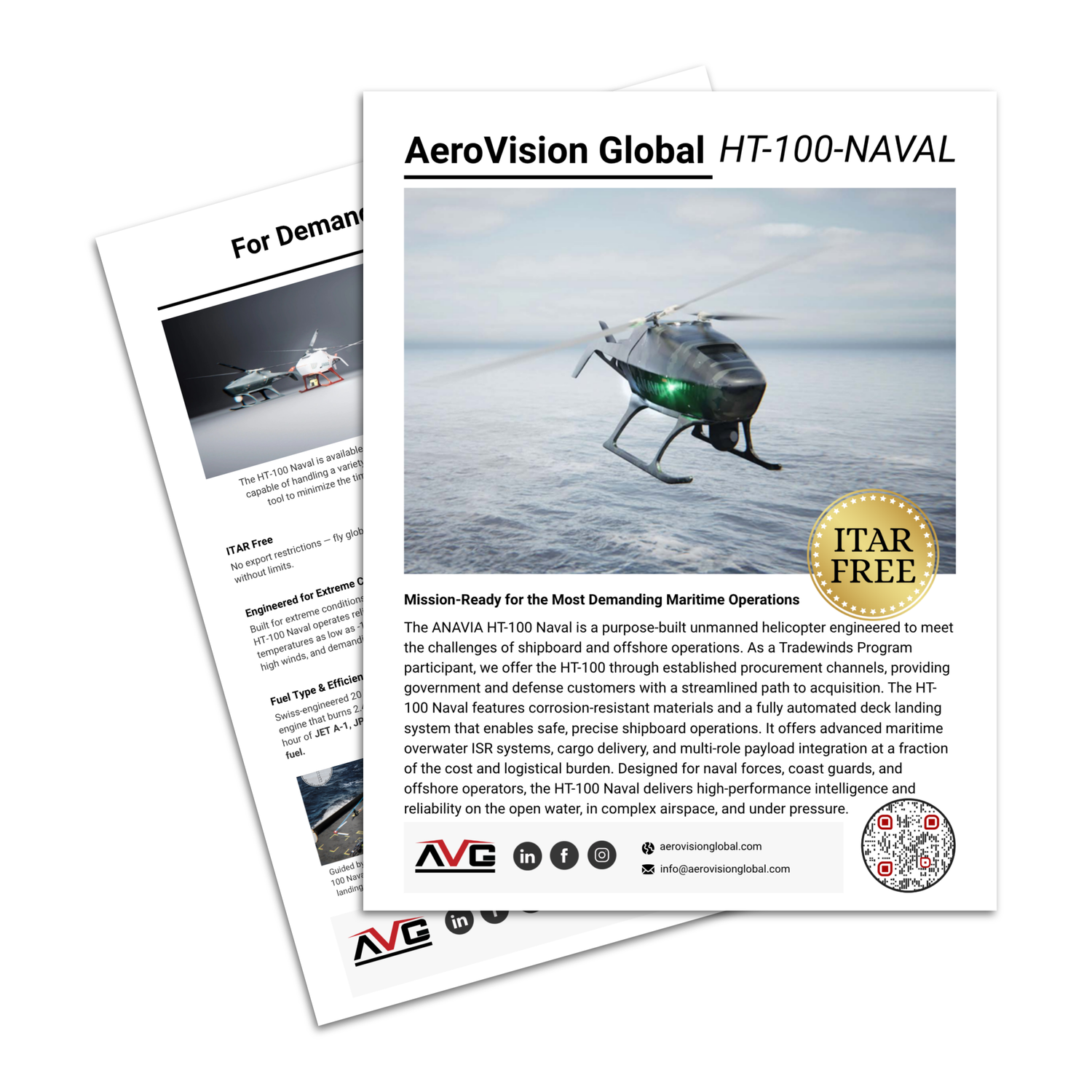

Download Our Highlight Sheet
Want more information on the ANAVIA HT-100 NAVAL? Click below to download our highlight sheet to learn more about the capabilities of the HT-100 NAVAL.
