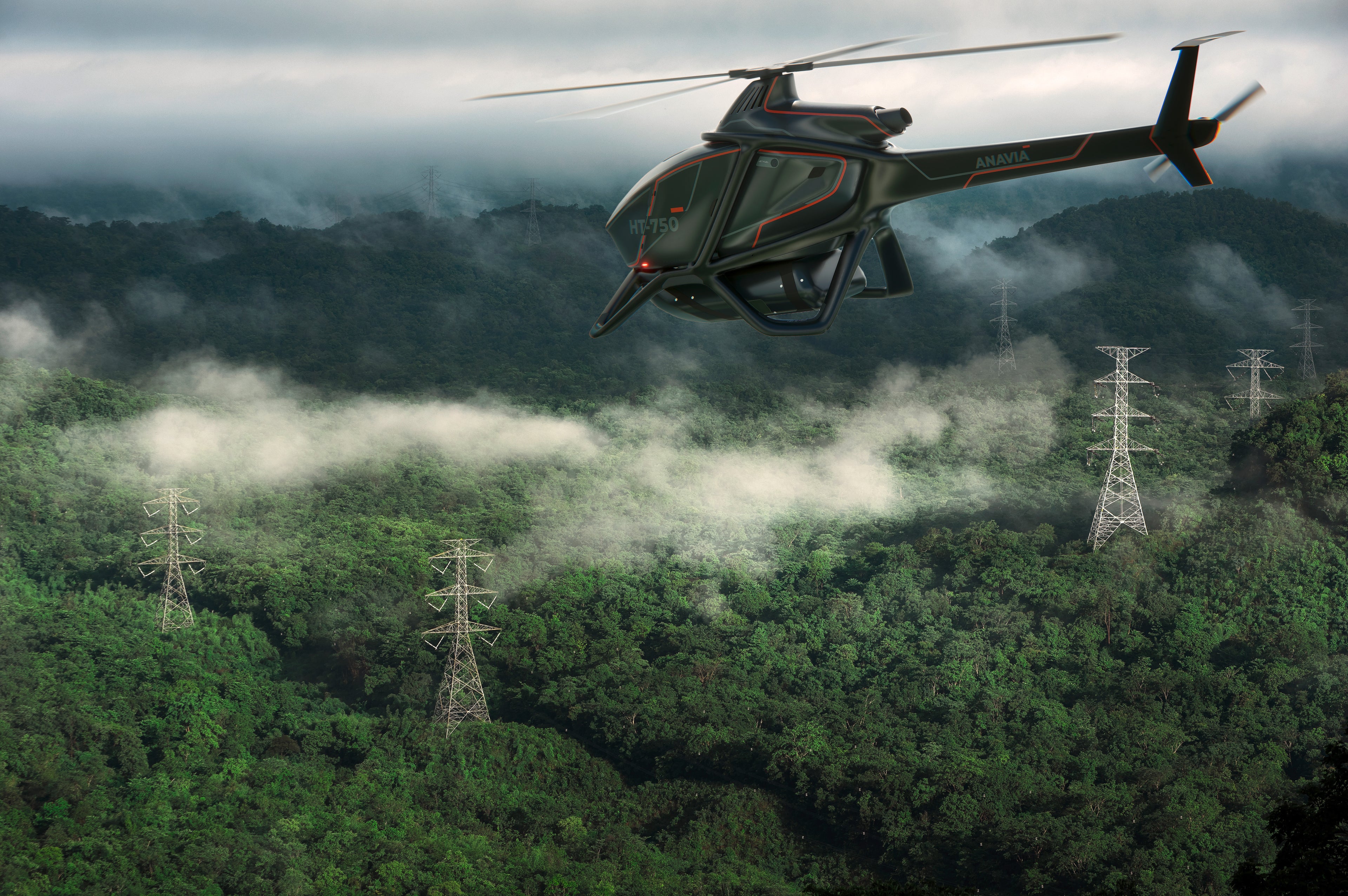

HT-750 flying over a forested area with power lines and towers.

ANAVIA HT-750 Heavy-Lift Unmanned VTOL Drone Helicopter

The ANAVIA HT-750 redefines unmanned aerial operations with its unmatched endurance, heavy payload capacity, and long-range capabilities. Designed for missions traditionally flown by manned helicopters, this Swiss-engineered VTOL system delivers superior intelligence, surveillance, and reconnaissance (ISR), cargo transport, and multi-mission adaptability.

15 hours
Flight Endurance
2535 lbs
Maximum Take-off Weight
137 mi/h
Maximum Speed

KEY FEATURES

Unrivalled Heavy-Lift Capability

Carries payloads up to 1,650 lbs, setting a new benchmark in unmanned aviation.
Long-range autonomous operations, ideal for ISR, logistics, and tactical deployments.
Optimised for extreme conditions, ensuring mission success in demanding environments.

Next-Generation ISR & Mission Flexibility

Advanced sensor integration: EO/IR, SAR, SIGINT, LiDAR, and hyperspectral imaging.
Autonomous multi-role operations for defence, border security, disaster response, and more.
High-performance Swiss engineering, ensuring reliability, precision, and efficiency.

Built for Global Deployments

Designed and manufactured in Switzerland, with an uncompromising focus on quality.
Robust airframe and rotor system, ensuring safety and stability in the toughest conditions.
Multi-mission versatility, ready to excel in military, commercial, and humanitarian operations.

The HT-750 is the ultimate heavy-lift unmanned VTOL system, delivering next-level capability, endurance, and mission success—whenever and wherever it's needed.

TECHNICAL DATA

Turbine	Gas turbo-shaft engine
Rotor	Semi-rigid 4-blade bearing-less rotor system
Typical empty weight	882 lbs (400 kg)
Fuel types	Jet A1 – other fuel types on demand (JP-8, JP-5)
Fuel consumption	15.8 gal/h
Data link type	Fully encrypted MESH IP (limitless SATCOM, dual MIMO radios with up to 100 Mbps data rate and AES256 encryption)
Data link range	Dependant on terrain topography and national regulations - radio and antenna configuration up to 124 mi
Operating temperature	-13 °F to +131 °F (-25 °C to +55 °C)
Max. wind speed	Up to 30 kn (56 km/h)
Start and landing	Fully autonomous
Tank Capacity	238 gallons (900 litres)

PERFORMANCE

Max. flight time	15 hours
Max. airspeed	19 kn (222 km/h)
Max. flight mission/ payload weight	1 h / 1750 lbs, 4 hrs / 1100 lbs, 8 hrs / 790 lbs, 15 hrs / 66 lbs
Max. take-off weight	2,536 lbs (1,150 kg)
Max. payload and fuel	1,654 lbs (750 kg)
Operating ceiling	13,123 ft (4,000 m)

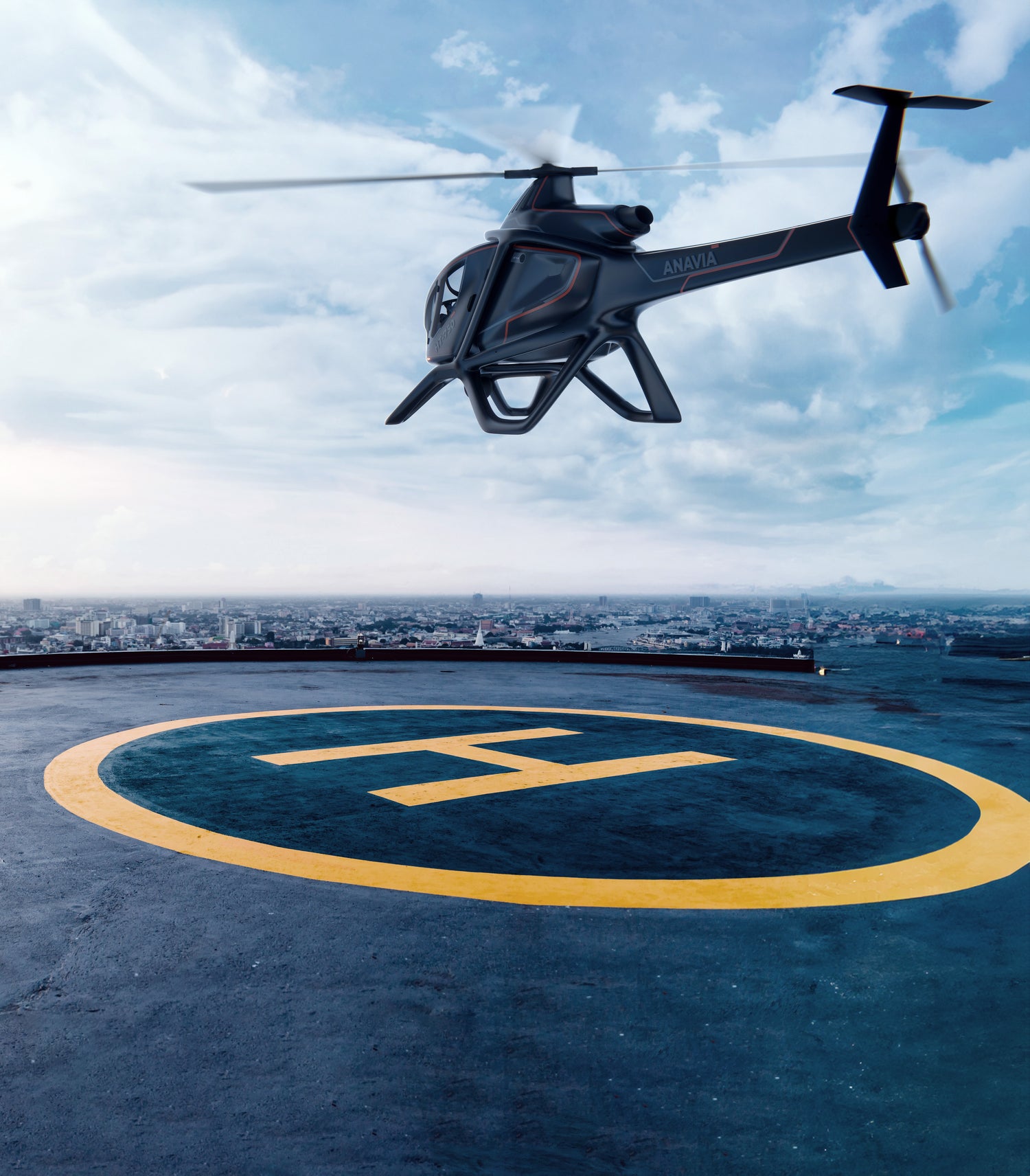

A render of the HT-750 taking of from a Helicopter landing pad, in the background a faraway city can be seen.

Take Mission Capability to an Entirely New Level

The ANAVIA HT-750 is a heavy-lift unmanned VTOL built to take on missions that were once the domain of manned helicopters. Swiss-engineered for endurance, strength, and precision, it offers unmatched versatility across intelligence, surveillance, reconnaissance, logistics, and tactical operations. With advanced sensor integration, automated flight capability, and a design optimized for extreme conditions, the HT-750 ensures reliable performance in defence, commercial, and humanitarian missions alike. Rugged, adaptable, and built to the highest standards of quality, it delivers the confidence and capability needed for complex operations anywhere in the world.

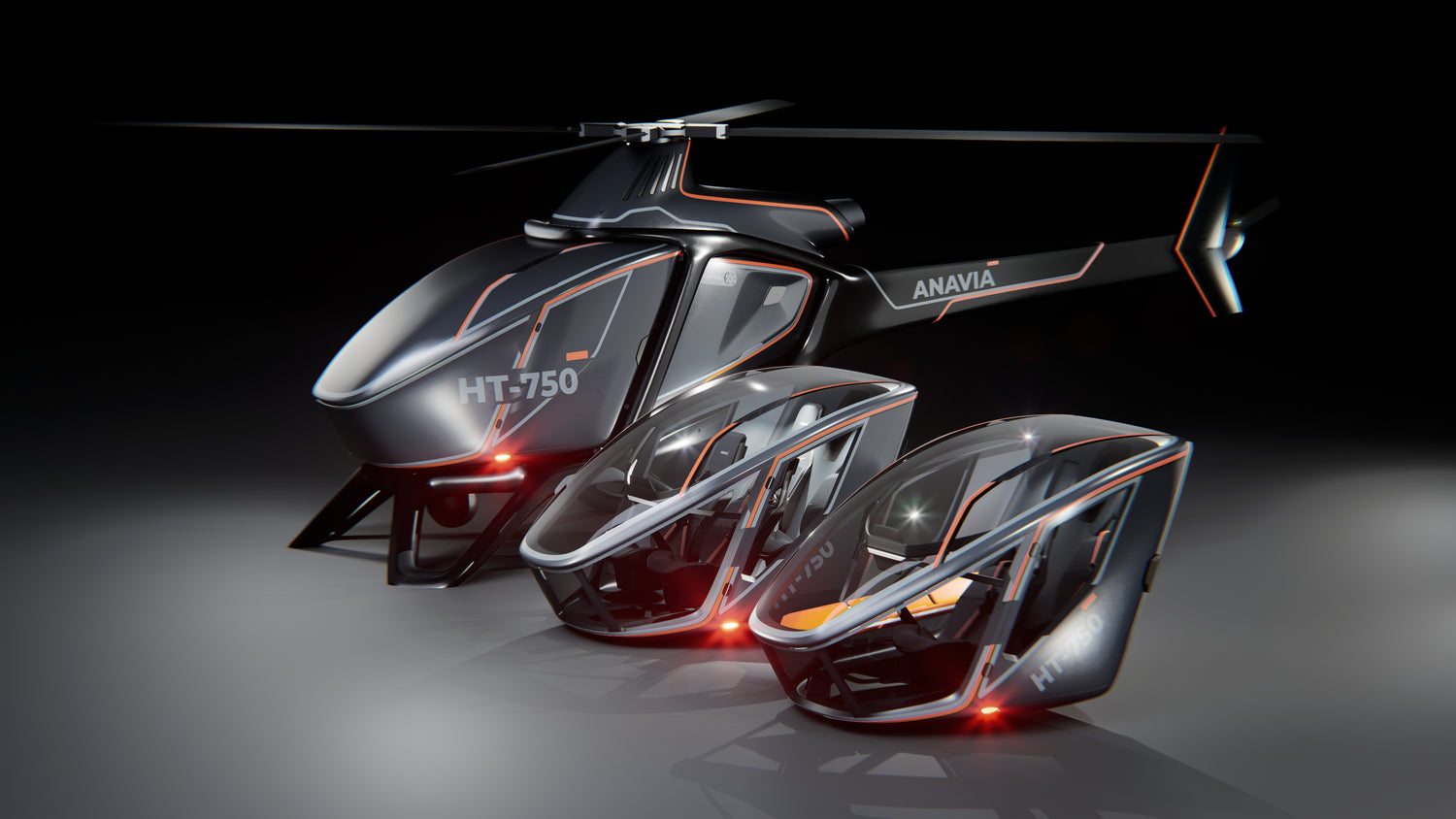

A stationary HT-750 is shown in front of a black background. Beside it are two alternate pod options: one that supports 2 passengers, and another with a stretcher inside.

Flight Endurance For Your Operational Environment

With a cruise speed of 137 mi/h, the HT-750 maintains consistent performance even in extreme weather conditions. Its modular ‘plug & play’ avionics system allows for seamless integration of sensors and mission-critical equipment, making it an adaptable platform for a wide range of operations. The HT-750 redefines what’s possible in autonomous UAV missions, setting a new benchmark in performance, versatility, and reliability.

The HT-750 and an attached heavy cargo payload is shown flying over a landscape with trees and mountains in the background.

Support & Payload Capabilities That Meet Your Demands

The HT-750 is engineered for maximum reliability, efficiency, and longevity. Its full carbon composite structure ensures a lightweight, durable airframe designed for high performance in demanding environments.

Frequently asked questions from our customers

Is the HT-750 Subject to ITAR Regulations?

No! The ANAVIA HT-750 is ITAR-FREE, meaning that it is not subject to the restrictions and regulations of The International Traffic in Arms Regulations by the U.S. Department of State.

Where does the ANAVIA HT-750 excel?

The ANAVIA HT-750 excels in high-endurance, heavy-lift unmanned missions where precision, reliability, and cost-efficiency are critical.

What is the practical difference between the ANAVIA HT-750 and other conventional helicopters or drones?

Simply put: operational capabilities of the ANAVIA HT-750 are far above that of conventional, electric drones or remotely piloted aerial vehicles on the market today. This is immediately demonstrated in terms of the difference in flight endurance, payload capacity, and operating conditions.

What options are available for payload?

The ANAVIA HT-750 has capabilities to support payloads for any flight mission. Download our ANAVIA HT-750 whitepaper below or contact us today to find out more or schedule a presentation.

How does my team get trained on the HT-750?

Download our ANAVIA HT-750 whitepaper or contact us today to find out more.

Is in-country support and MRO provided for the HT-750?

Generally, yes, AeroVision is able to provide in-country MRO and program support for your flight operations of the HT-750.

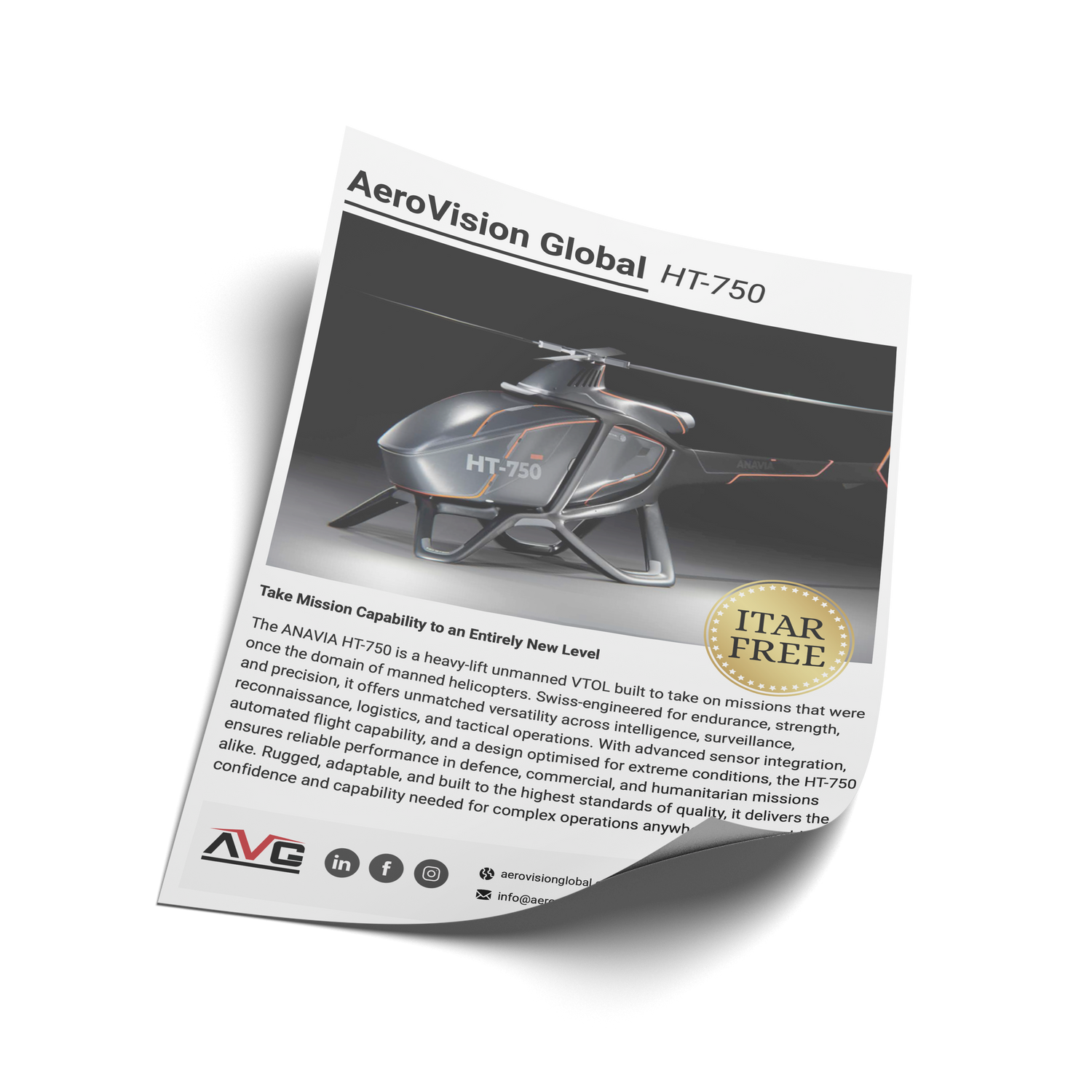

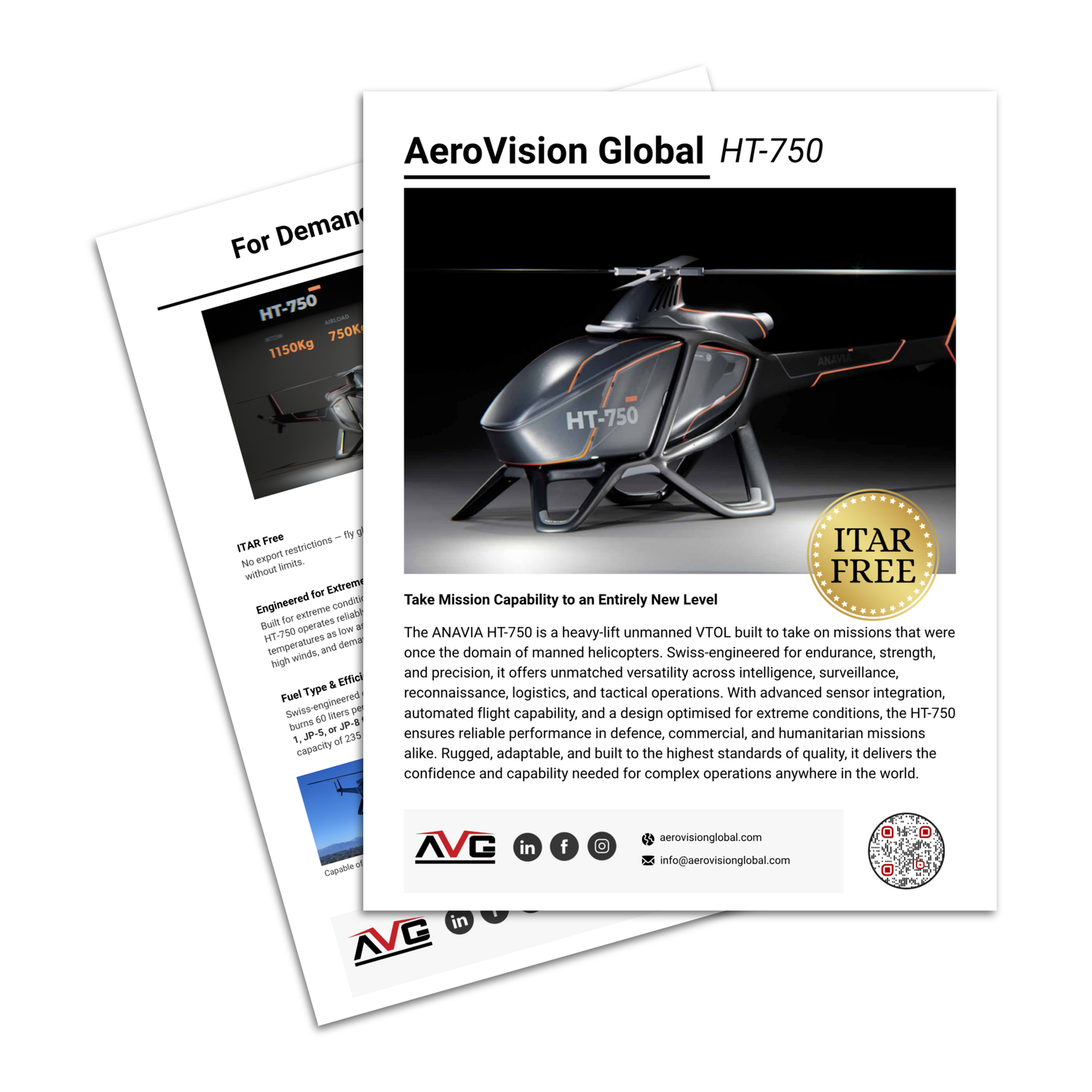

Download Our Highlight Sheet

Want more information on the ANAVIA HT-750? Click below to download our highlight sheet to learn more about the capabilities of the HT-750.
