Unparalleled Flight Mission Success

The ANAVIA HT-100 is a Remotely Piloted Performance Helicopter that sets the standard for autonomous flying, with a flight time of 360 minutes and airload of up to 60 kg. Innovative carbon lightweight construction, decades of knowledge from aerospace and motorsport technology are in the DNA of every ANAVIA helicopter.

The ANAVIA HT-100 is truly unique in terms of its security, performance, and usability. Only the HT-100 can make all your flight missions a guaranteed success.

Flight Endurance For Your Operational Environment

The ANAVIA HT-100 is a Remotely Piloted Performance Helicopter that sets the standard for autonomous flying, with a flight time of 360 minutes and airload of up to 60 kg. Innovative carbon lightweight construction, decades of knowledge from aerospace and motorsport technology are in the DNA of every ANAVIA helicopter.

The ANAVIA HT-100 is truly unique in terms of its security, performance, and usability. Only the HT-100 can make all your flight missions a guaranteed success.

Support & Payload Capabilities That Meet Your Demands

The ANAVIA HT-100 is a Remotely Piloted Performance Helicopter that sets the standard for autonomous flying, with a flight time of 360 minutes and airload of up to 60 kg. Innovative carbon lightweight construction, decades of knowledge from aerospace and motorsport technology are in the DNA of every ANAVIA helicopter.

The ANAVIA HT-100 is truly unique in terms of its security, performance, and usability. Only the HT-100 can make all your flight missions a guaranteed success.

Here are the most frequently asked questions from our customers

Where does the Anavia HT-100 excel?

What is the practical difference between the Anavia HT-100 and other conventional drones?

Simply put: operational capabilities of the Anavia HT-100 are far above that of conventional, electric drones or remotely piloted aerial vehicles on the market today. This is immediately demonstrated in terms of the difference in flight endurance, payload capacity, and operating conditions.

The HT-100 helicopter features a maximum flight endurance of 6 hours and 600km, and payload capacity of 65kg. Using fuel rather than electric battery power means that operations won't be affected by typical temperature impacts on range.

What options are available for payload?

The Anavia HT-100 has capabilities to support payloads for any flight mission.

How does my team get trained on the HT-100?

Mission control at your fingertips

The ANAVIA HT-100 is a Remotely Piloted Performance Helicopter that sets the standard for autonomous flying, with a flight time of 360 minutes and airload of up to 60 kg. Innovative carbon lightweight construction, decades of knowledge from aerospace and motorsport technology are in the DNA of every ANAVIA helicopter.

The ANAVIA HT-100 is truly unique in terms of its security, performance, and usability. Only the HT-100 can make all your flight missions a guaranteed success.

Explore the HT-100’s Unparalleled Technology

HELICOPTER HIGHLIGHTS

  • High-performance lightweight carbon construction for the cell and rotor blades.
  • Flettner double rotor system enables high payloads and flight stability.
  • Reliable, powerful backup electric drive as an emergency system.
  • Intelligent redundancy system for uncompromising safety.
  • Low vibration thanks to the 15 kW shaft turbine.
  • Low-maintenance, closed, high-tech gearbox.
  • Proven, state-of-the-art hardware and software.
  • Developed and manufactured according JARUS CS-LURS.

TECHNICAL DATA

  • Turbine: 15 kW shaft turbine
  • Rotor: Flettner double rotor system
  • Empty weight: 55 kg (121 lbs)
  • Tank capacity: 60 liters (15.8 gallons)
  • Fuel types: Jet A1 – other fuel types on demand (JP-8, JP-5)
  • Fuel consumption: 13 l/h (3.43 gallons/h)
  • Data link type: fully encrypted MESH IP (SATCOM and LTE on demand)
  • Data link range: depending on national regulations, radio setup, antenna configuration and terrain topography up to 200 km
  • Operating temperature: -25 °C to + 55 °C | -13°F to + 131°F
  • Max. operating wind speed: up to 46 km/h (25 kn)
  • Start and landing: fully autonomous.

PERFORMANCE SPECIFICATIONS

  • Max. Payload and fuel: 60 kg (132 lbs)
  • Max. flight time: 360 min.
  • Max. airspeed: 120 km/ h (65 kn)
  • Max. flight time/payload weight: 1hrs/51kg 2hrs/43kg 4hrs/28kg 6hrs/13kg
  • Max. take-off weight: 120 kg (264 lbs)
  • Operating ceiling (max. density altitude): 4000 m (13120 ft)

AIRCRAFT DIMENSIONS

  • Rotor diameter: 3.75 m (12.00 ft)
  • Overall Dimensions L/W/H: 2.82 m x 0.72 m x 1.00 m (9.25 ft x 2.36 ft x 3.28 ft)

SENSOR PAYLOAD OPTIONS

  • Epsilon 180 / 140 LC / 140Z G2
  • Trakka TC-300
  • L3 Harris Wescam MX10
  • TK-8, PT6, P8-D, P8-DN WAMI System etc.
  • Yellowscan explorer LiDAR
  • Riegl VUX 240
  • PhaseOne iXM 50 / 100
  • Hyper-and multispectral sensor, co-aligned-sensor
  • Rededge P
  • IMSI grabber system 4 band
  • Meta-Sensing F-Open
  • P-Band SAR system
  • VIDAR optical radar
  • VMS-5 pod
  • Epsilon 180 EO / IR
  • ComDart Geo-Location system

CARGO PAYLOAD OPTIONS

Cargo-Box with multiple options:

  • Sizes and fixation layouts
  • Active cooling system
  • Skyhook with 70m rope and net
  • Armored / reinforced / insulated
  • Remote drop system

Want to Learn More About How The HT-100 Can Transform Your Operations?

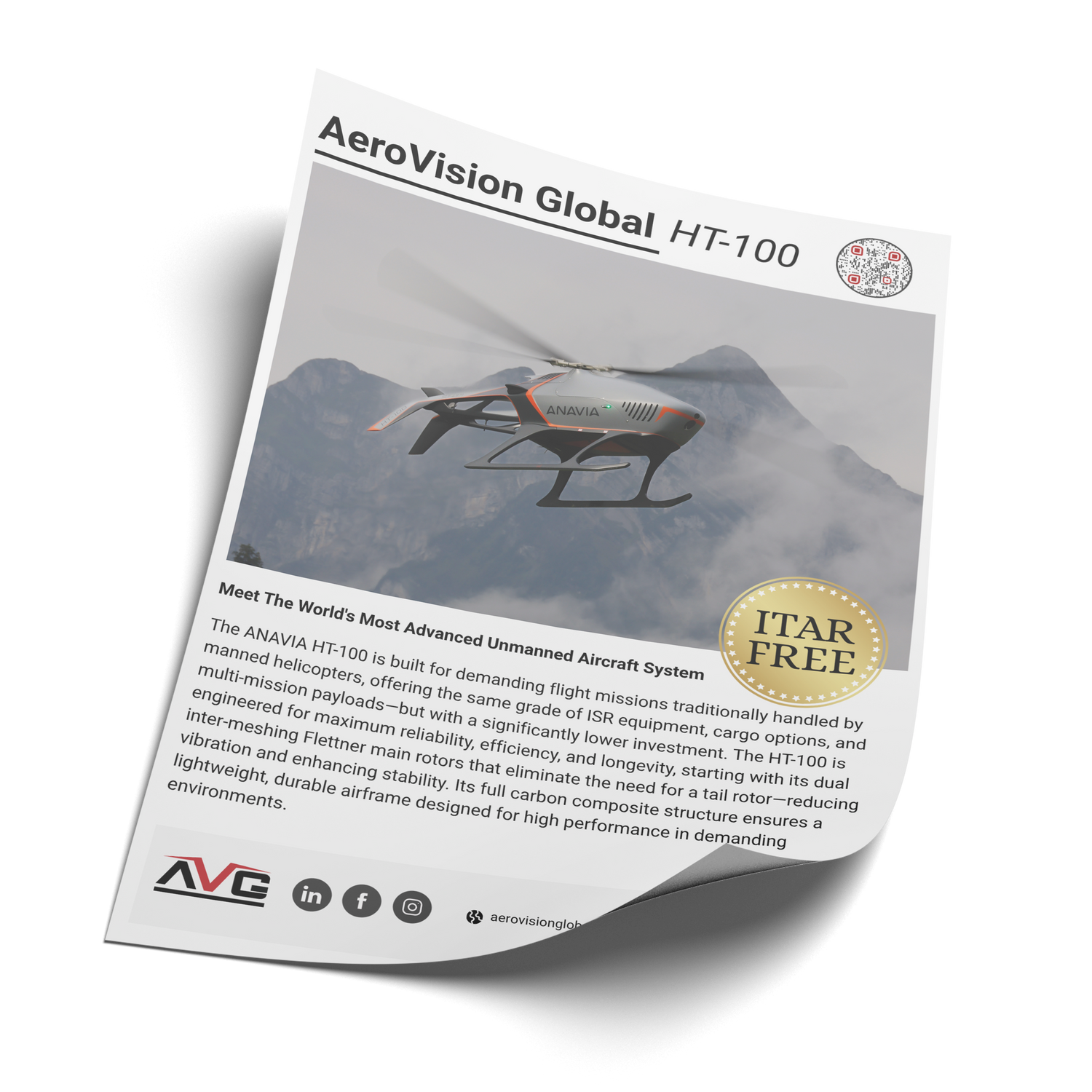

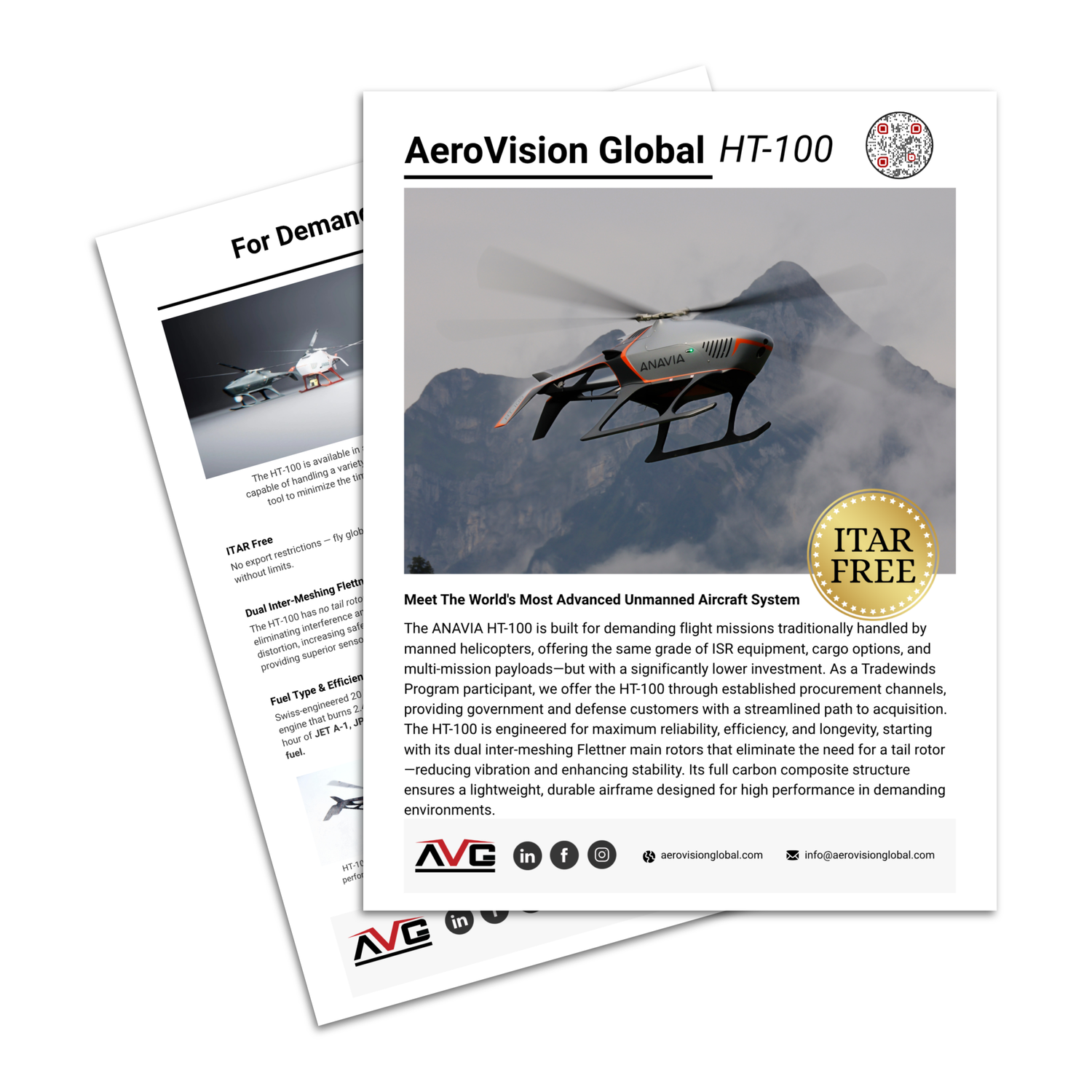

Download our Anavia HT-100 whitepaper or contact us today to find out more or schedule a presentation.
